Clutch Cover

Better R&D for Higher Quality

It is set between the engine and transmission of manual transmission automobile. It engages and disengages the engine force to transmission.

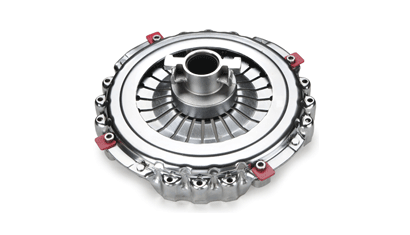

  • Pull Type

    Pull Type

    - Disengage engine force by pulling the lever which reduce pedal effort.
    - Applied to high-torque automobiles.

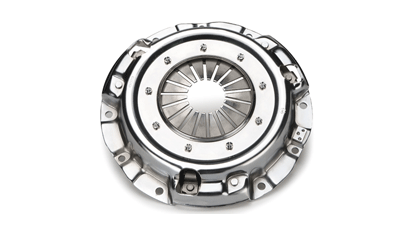

  • Diaphragm Spring Curling Type

    Diaphragm SpringCurling Type

    - Supports diaphragm spring with curled tag of clutch cover.
    - Compact with only small number of components and have high-durability

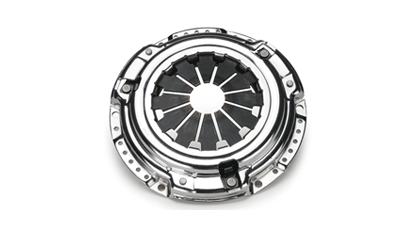

  • Diaphragm Spring Set Rivet Type

    Diaphragm Spring Set Rivet Type

    It supports the diaphragm spring with a rivet.

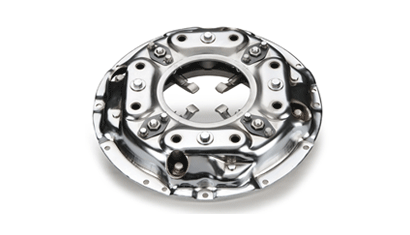

  • Coil Spring Type

    Coil Spmg Type

    - Deliver engine force with coil spring
    - Usually applied to large size automobile and agricultural machines
